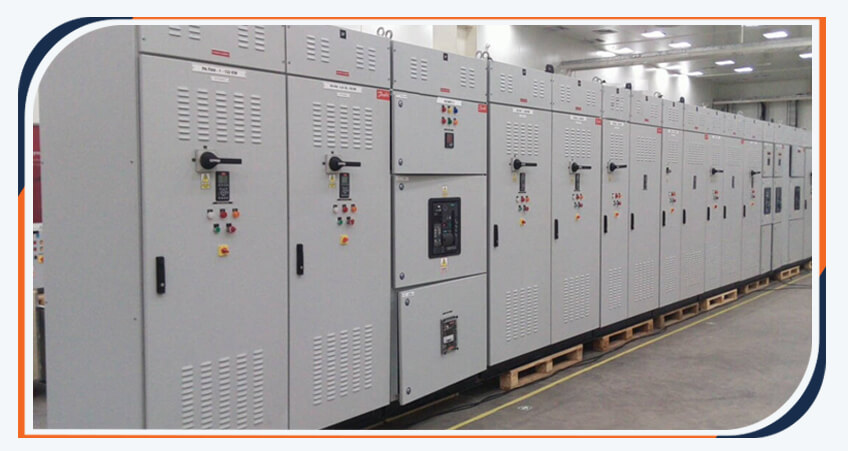

PCC Panel

PCC Panel

Power Control Centre (PCC) measured to be the base of an electrical organism in any industry. Hence it shall present users long term dependability, protection, low maintenance & testing time.

Power Control Centre (PCC) is used for distribution and control of different power source used in industry. Usually Power Control Centres is set up near power source hence fault level is high. It is planned to suit fault level of 50KA or 65 KA for 1 sec. Power Control Centres are intended to suit the fault level as well as temperature rise to 40°c above ambient. These are accessible in a wide range (from 630A to 6300 A) to match every user’s requirement.

Power Control Centre is Reliable, Compact and Safe

  • Assemblies offering maximum reliability
  • For each rated present range, most favourable connection conditions for cables
  • Split function partitions consisting of a toggle device, auxiliary tools and a cable connection compartment for safety
  • Contribute way with no any sacrifices in terms of practical specifications High short period existing carrying capacity for time-graded short-circuit guard assures dependable operation of the switchboard without being pretentious by short-circuit
  • Suggestion & procedure in the door closed situation
  • Main LT Panel, PCC With single, multiple incomer, bus couplers with proper interlocking required protection, fault indications, interlocking is provided.

Technical Specification

  • Compartmentalize
  • Non- Compartmentalize/Cubical
  • Drawout type
  • Non-Drawout type
  • Up to 6300A
  • Up to 65kA
  • Power Distribution
  • Power distribution with isolation
  • Power distribution with selected multiple sources
    The busbar shall be housed in a separate compartment. The busbar shall be isolated with 3 mm thick FRC or acrylic sheet to avoid any accidental contact. The busbar shall be arranged such that minimum clearances between the busbar are maintained as per below.
  • Between phases : 27 mm min.
  • Between phases and neutral : 25 mm min.
  • Between phases and earth : 25 mm min.
  • Between neutral and earth : 23 mm min.
  • IP-54 confirming to IS 2147
  • Design Ambient temp. standard 40°C Operated 45°C & 50°C
  • Routine Test
  • Mechanical endurance Test
  • HV Test
  • CRCA sheet steel
  • Structure,door, cover: 1.6 mm thick
  • Gland plate: 3mm thick
